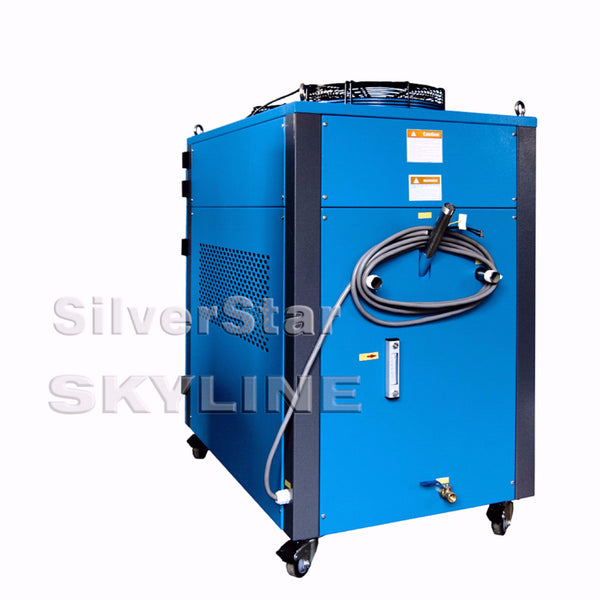

Capacities Model: SAC-05 Cooling capacity: 5 ton BTU/hr: 60000 Cooling range: 42 °F to 77°F or 5°C to 25°C Reservoir Capacity: 17 gallons Water pump GPM: 30
460/3 or 480/3
Full Load Amp (FLA)

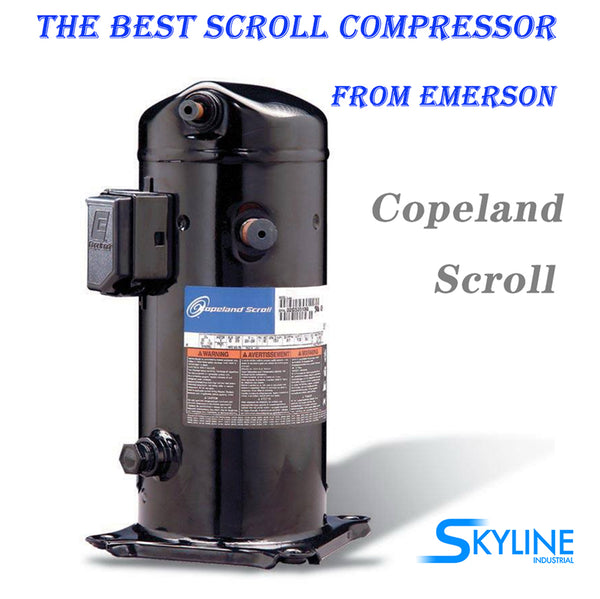

Misc Specifications Compressor: Copeland Scroll Refrigerant: R407C Inlet and Outlet: 1 in MPT Stainless steel reservoir Quiet design for indoor use
Applications Any applications and processes with close loop water circulation for chilled water 5°C to 25°C. We have more than one thousand Skyline Process Chillers running all over the country in a wide variety of industries include:
Plastic injection molding & blow molding
Integrated circuits test
Beverages (wine and dairy)
EDM, MRI, farm, Motor, metal fabrication, metal polish.
Shipping Shipping weight: 700 lbs Shipping dimension: 59 x 35 x 64 in shipping method: LTL wooden crated
Warranty One year factory defects
Payment required in full prior to shipping. Pay by check, wire transfer, credit card (fee may apply) or ACH. Make check payable to:
Skyline Industrial Group, Inc.
2672 Conejo Center Drive, Thousand Oaks, CA 91320
Phone: +1 (805)376-1088
California state sales tax will be added to transactions shipped to California addresses unless a valid tax exempt certificate is presented prior to final sale.
Customer is responsible for paying shipping and handling charges. Units are shipped using LTL trucking carriers. Additional freight service like liftgate are available upon request. Skyline Industrial is not responsible for any damages, which may occur during transportation as it is not covered by the warranty. Instead, we will help dispute the damages with the carrying company.
All sales arefinal.
All products come with a one year warranty from date of purchase on factory defects. Skyline Industrial shall not be held responsible for damages resulting from negligence during installation or operation. The correct interpretation of the technical specifications and the user manual is the buyer's responsibility. Problems arising from misuse are the buyer's responsibility.
