8 Ton Air Cooled Process Chiller
Cooling capacity: 8 ton
Cooling range: 42 °F to 77°F or 5°C to 25°C
Reservoir Capacity: 30 gallons
Water pump 2HP MAX GPM: 50
|Volts/Phase||230/3||460/3 or 480/3|
|Full Load Amp (FLA)||35||19|

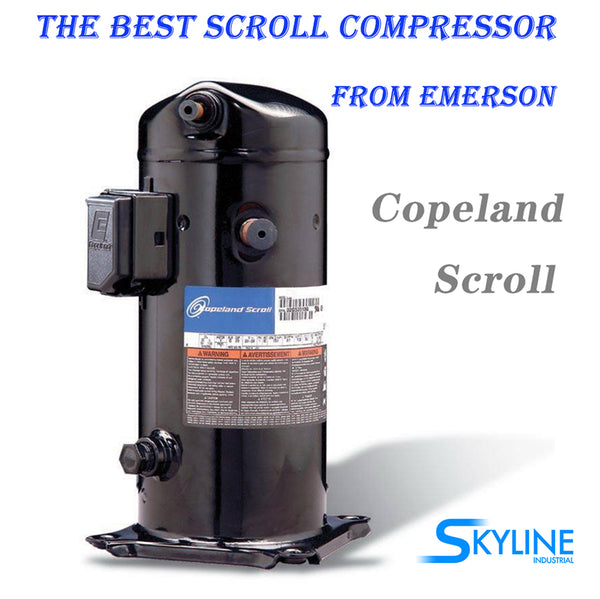

Compressor: Copeland Scroll
Inlet and Outlet: 1 in MNPT
Stainless steel reservoir
Quiet design for indoor use
Any applications and processes with close loop water circulation for chilled water 5°C to 25°C. We have more than one thousand Skyline Process Chillers running all over the country in a wide variety of industries include:
- Plastic injection molding & blow molding
- Integrated circuits test
- Die casting
- Beverages (wine and dairy)
- EDM, MRI, farm, Motor, metal fabrication, metal polish.
Shipping weight: 900 lbs
Shipping dimension: 64 x 40 x 74 in
shipping method: LTL wooden crated
One year factory
Payment required in full prior to shipping. Pay by check, wire transfer, credit card (fee may apply) or ACH. Make check payable to:
Skyline Industrial Group, Inc.
14145 Proctor Ave. #19,
La Puente, CA 91746
California state sales tax will be added to transactions shipped to California addresses unless a valid tax exempt certificate is presented prior to final sale.
Customer is responsible for paying shipping and handling charges. Units are shipped using LTL trucking carriers. Additional freight service like liftgate are available upon request. Skyline Industrial is not responsible for any damages, which may occur during transportation as it is not covered by the warranty. Instead, we will help dispute the damages with the carrying company.
All sales are final.
All products come with a one year warranty from date of purchase on factory defects. Skyline Industrial shall not be held responsible for damages resulting from negligence during installation or operation. The correct interpretation of the technical specifications and the user manual is the buyer's responsibility. Problems arising from misuse are the buyer's responsibility.
